DRF API Logger

A comprehensive API logging solution for Django Rest Framework projects that captures detailed request/response information with low request-path overhead.

Key Features

• Request details: URL, method, headers, body, and client IP

• Response information: status code, response body, and execution time

• Automatic masking of sensitive data (passwords, tokens)

• Non-blocking background processing with configurable queuing

• Database logging and/or real-time signal notifications

• Built-in admin dashboard with charts and performance metrics

• Per-request API profiling with auto-diagnosis of bottlenecks

Getting Started

Installation

pip install drf-api-logger

Configuration

Add drf_api_logger to your INSTALLED_APPS:

INSTALLED_APPS = [
    # ... your other apps
    'drf_api_logger',
]

Add the middleware:

MIDDLEWARE = [
    # ... your other middleware
    'drf_api_logger.middleware.api_logger_middleware.APILoggerMiddleware',
]

Run migrations (required for database logging):

python manage.py migrate

Database Logging

Enable database storage for API logs:

# settings.py
DRF_API_LOGGER_DATABASE = True  # Default: False

Logs will be available in the Django Admin Panel with search, filtering, and analytics charts.

Note

Make sure to run python manage.py migrate after enabling database logging.

Admin Dashboard

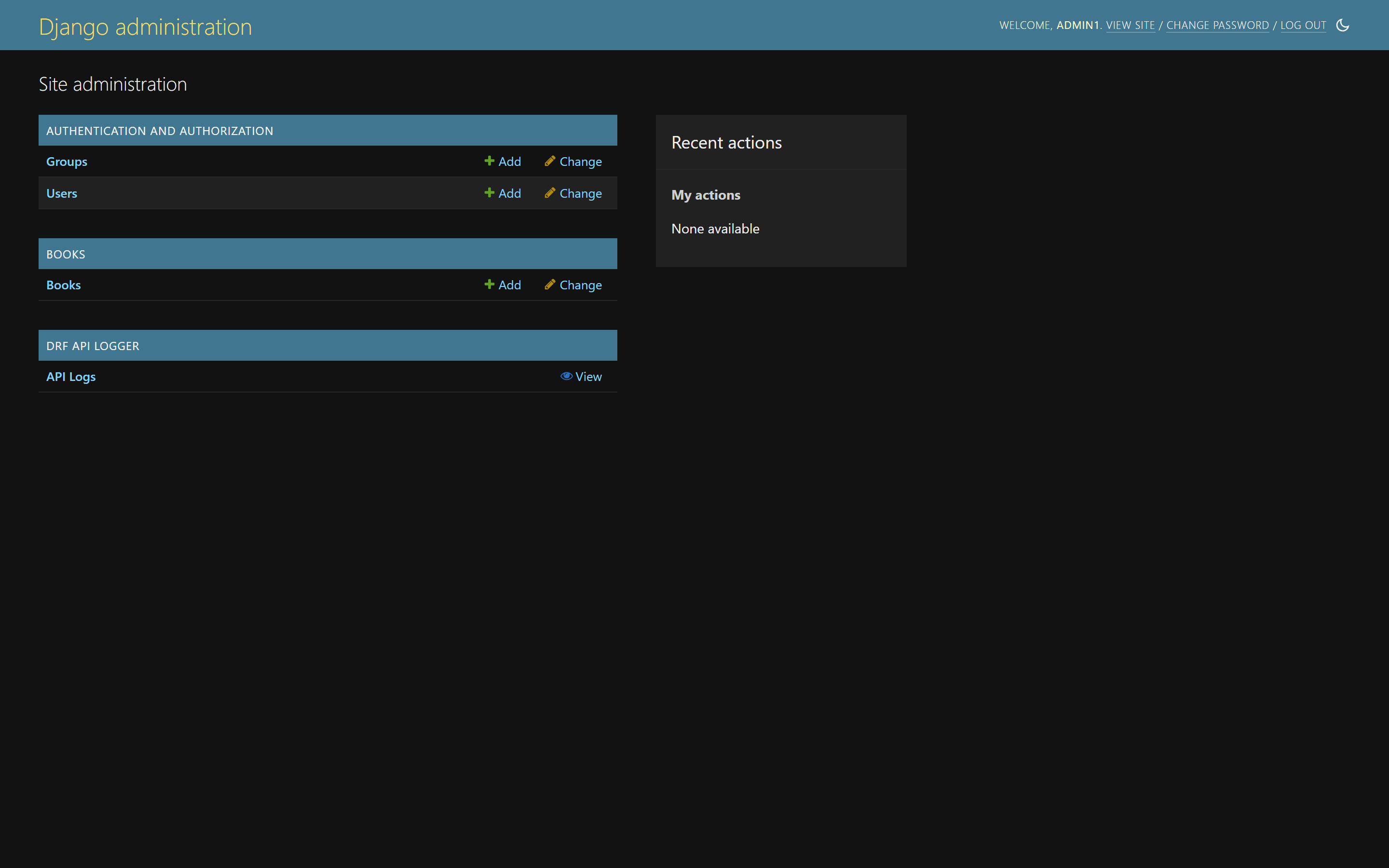

The DRF API Logger section appears in the Django admin home page.

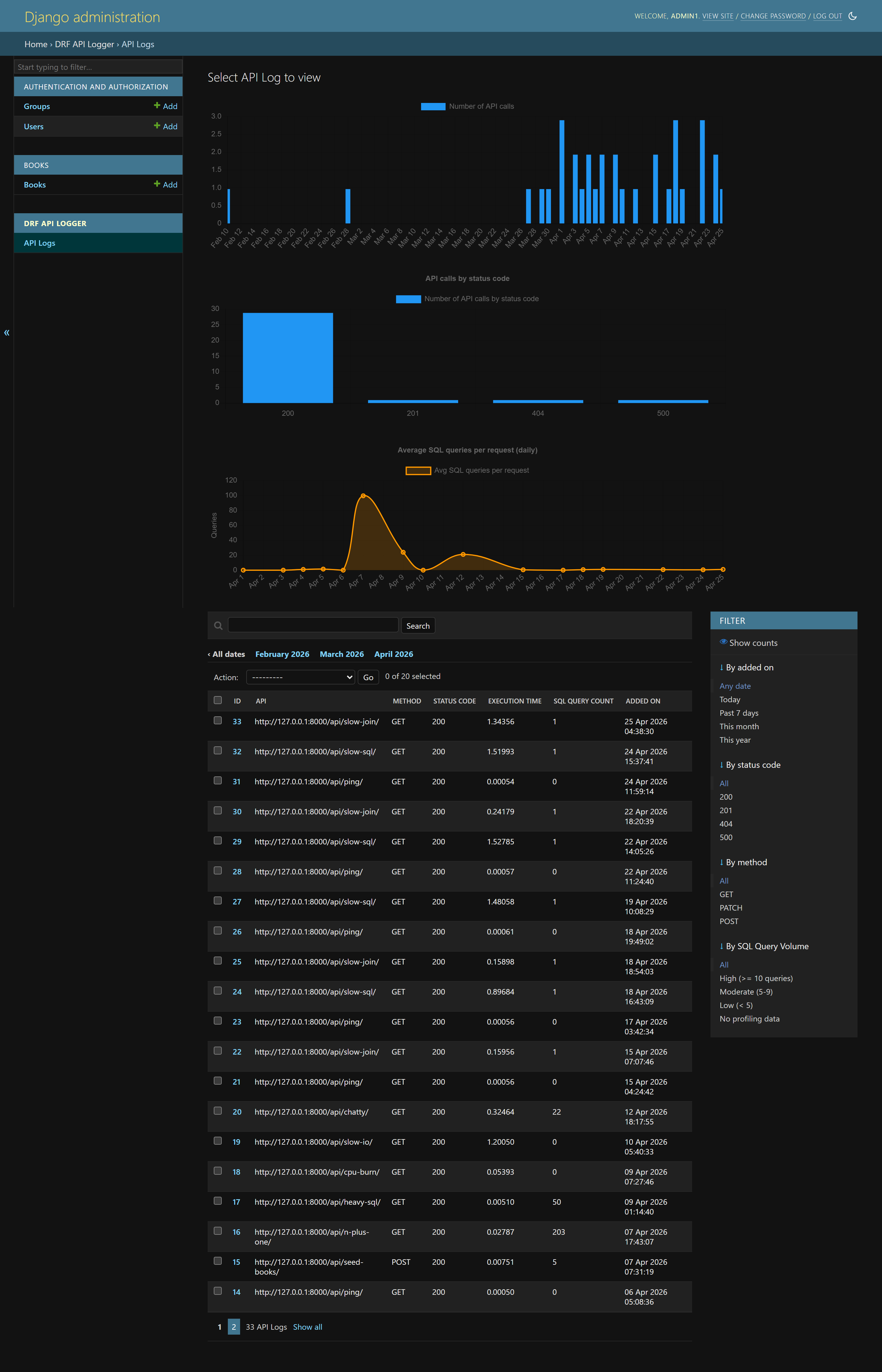

Log listing with charts for API call volume, status code distribution, and SQL query averages. Filter by date, status code, method, and SQL query volume.

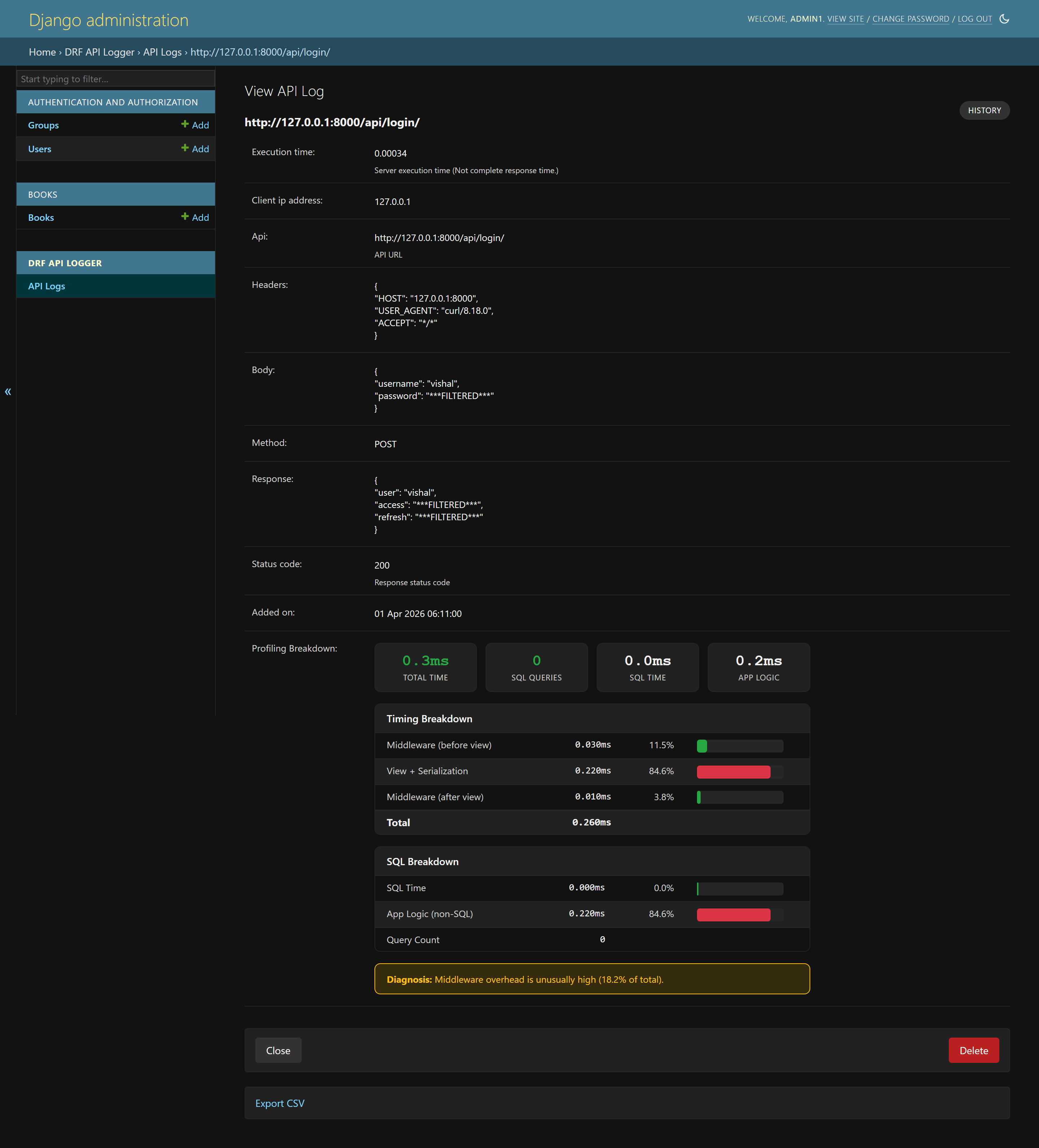

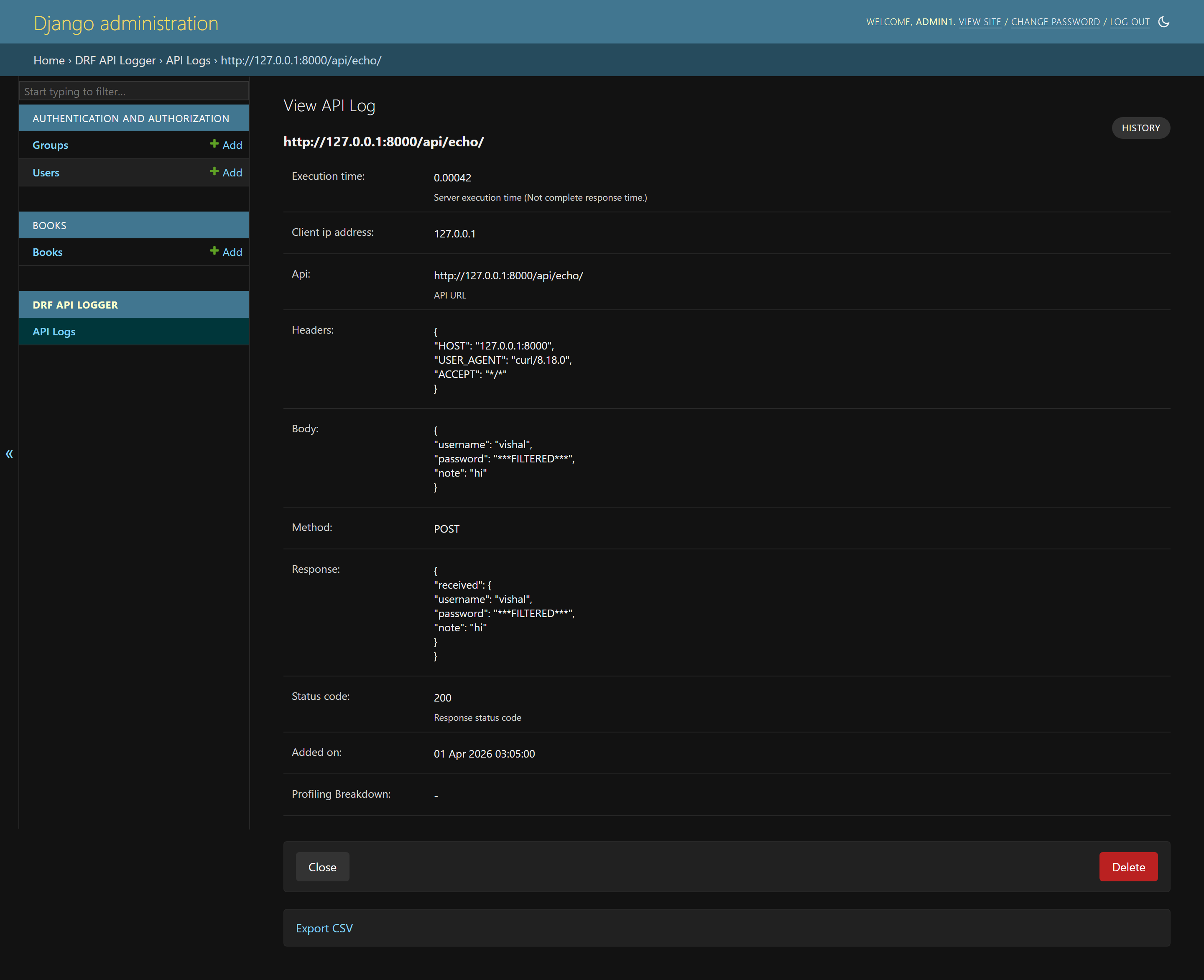

Detailed log view showing request/response data with sensitive fields automatically masked.

Signal-Based Logging

Enable real-time signal notifications for custom logging:

# settings.py
DRF_API_LOGGER_SIGNAL = True  # Default: False

Subscribe to signals:

from drf_api_logger import API_LOGGER_SIGNAL

def listener_one(**kwargs):
    print(kwargs)

def listener_two(**kwargs):
    print(kwargs)

# Subscribe
API_LOGGER_SIGNAL.listen += listener_one
API_LOGGER_SIGNAL.listen += listener_two

# Unsubscribe
API_LOGGER_SIGNAL.listen -= listener_one

Signal data structure:

{
    'api': '/api/users/',
    'method': 'POST',
    'status_code': 201,
    'headers': {'Content-Type': 'application/json'},
    'body': {'username': 'john', 'password': '***FILTERED***'},
    'response': {'id': 1, 'username': 'john'},
    'client_ip_address': '192.168.1.100',
    'execution_time': 0.142,
    'added_on': datetime.now(),
    'tracing_id': 'uuid4-string',       # if tracing enabled
    'profiling_data': { ... },           # if profiling enabled
    'sql_query_count': 5,                # if profiling enabled
}

API Profiling

Enable per-request latency breakdown to identify performance bottlenecks in production without attaching a profiler:

# settings.py
DRF_API_LOGGER_ENABLE_PROFILING = True            # Default: False
DRF_API_LOGGER_PROFILING_SQL_TRACKING = True       # Default: True
DRF_API_LOGGER_PROFILING_SAMPLE_RATE = 1.0         # Default: 1.0

When enabled, each logged request includes a profiling breakdown showing:

• Middleware time (before and after view)

• View + Serialization time

• SQL time and query count (production-safe via connection.force_debug_cursor)

• Auto-diagnosis hints for common performance issues

For high-traffic systems, reduce DRF_API_LOGGER_PROFILING_SAMPLE_RATE to profile only a fraction of logged requests.

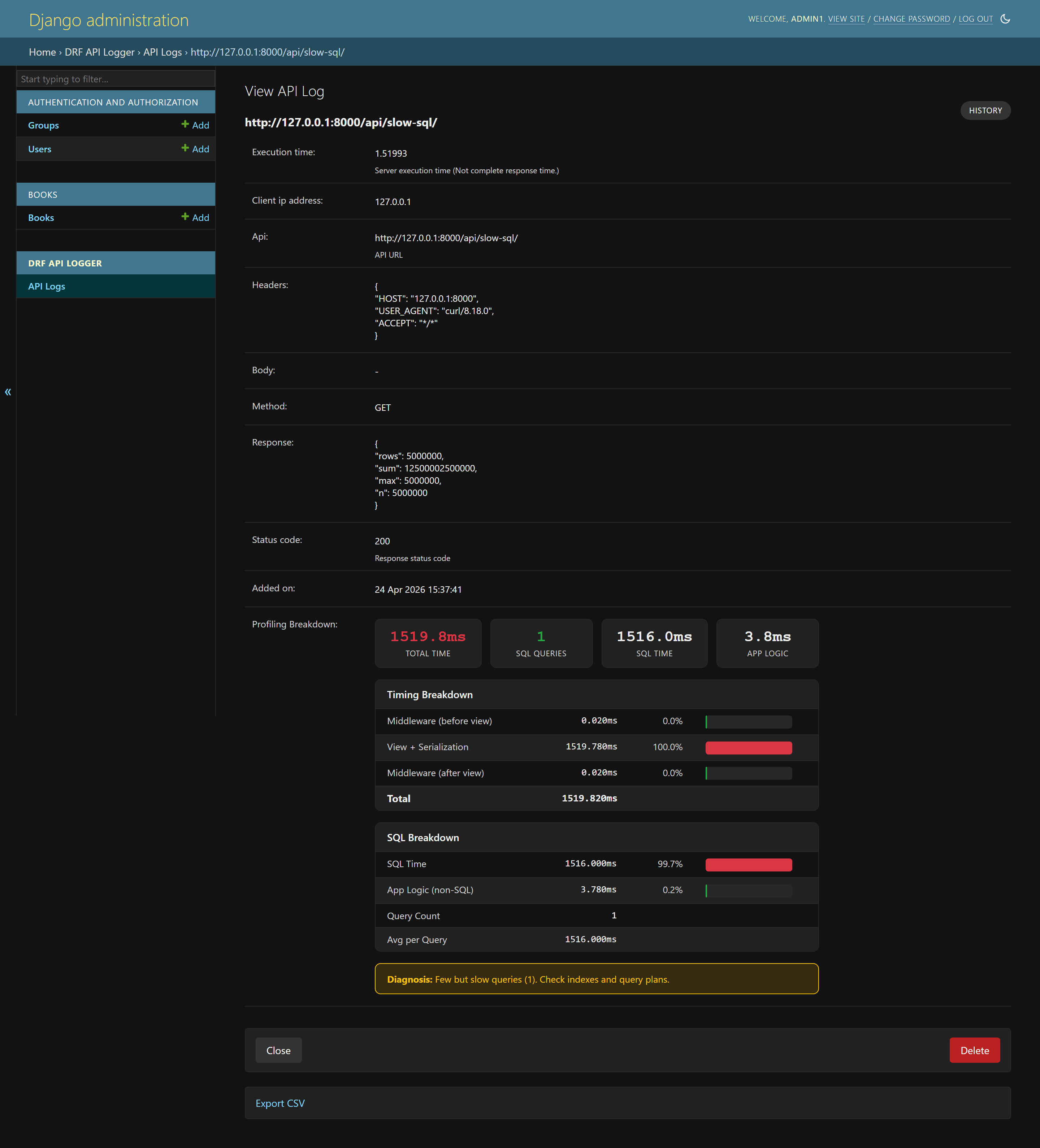

Slow SQL Query Detection

A single query taking 1516ms. Diagnosis: “Few but slow queries. Check indexes and query plans.”

N+1 Query Detection

203 SQL queries detected. Diagnosis: “N+1 query problem likely.”

Middleware Overhead Detection

Middleware consuming 18.2% of total time. Sensitive fields (password, access, refresh) automatically masked.

Auto-Diagnosis Patterns

Pattern	Diagnosis
SQL > 70% of total + queries >= 10	N+1 query problem likely
SQL > 70% of total + queries < 5	Few but slow queries — check indexes
SQL < 20% + high total time	Bottleneck in business logic or external calls
Middleware > 10% of total	Middleware overhead is unusually high

Configuration Reference

Setting	Type	Default	Description
DRF_API_LOGGER_DATABASE	bool	False	Enable database logging
DRF_API_LOGGER_SIGNAL	bool	False	Enable signal-based logging
DRF_API_LOGGER_ENABLE_PROFILING	bool	False	Enable per-request profiling breakdown
DRF_API_LOGGER_PROFILING_SQL_TRACKING	bool	True	Track SQL queries (sub-toggle of profiling)
DRF_API_LOGGER_PROFILING_SAMPLE_RATE	float	1.0	Fraction of logged requests that include profiling data
DRF_LOGGER_QUEUE_MAX_SIZE	int	50	Bulk insert batch size threshold
DRF_LOGGER_INTERVAL	int	10	Seconds between queue flushes
DRF_API_LOGGER_SKIP_NAMESPACE	list	[]	App namespaces to skip logging
DRF_API_LOGGER_SKIP_URL_NAME	list	[]	URL names to skip logging
DRF_API_LOGGER_METHODS	list	[]	Log only these HTTP methods (empty = all)
DRF_API_LOGGER_STATUS_CODES	list	[]	Log only these status codes (empty = all)
DRF_API_LOGGER_CONTENT_TYPES	list	JSON, gzip, binary, calendar	Response content types eligible for body logging
DRF_API_LOGGER_EXCLUDE_KEYS	list	['password', 'token', 'access', 'refresh'] plus common credential headers	Keys to mask with ***FILTERED***
DRF_API_LOGGER_DEFAULT_DATABASE	str	'default'	Database alias for log storage
DRF_API_LOGGER_SLOW_API_ABOVE	int	None	Slow API threshold in milliseconds
DRF_API_LOGGER_MAX_REQUEST_BODY_SIZE	int	32768	Max request body size in bytes (-1 = no limit)
DRF_API_LOGGER_MAX_RESPONSE_BODY_SIZE	int	65536	Max response body size in bytes (-1 = no limit)
DRF_API_LOGGER_PATH_TYPE	str	'ABSOLUTE'	URL format: ABSOLUTE, FULL_PATH, or RAW_URI
DRF_API_LOGGER_TIMEDELTA	int	0	Admin display timezone offset in minutes
DRF_API_LOGGER_ENABLE_TRACING	bool	False	Enable request tracing IDs
DRF_API_LOGGER_TRACING_FUNC	str	None	Custom tracing ID generator (dotted path)
DRF_API_LOGGER_TRACING_ID_HEADER_NAME	str	None	Header name to read tracing ID from
DRF_API_LOGGER_CUSTOM_HANDLER	str	None	Dotted-path function to transform or drop log entries before queueing

Note

Admin panel requests are automatically excluded from logging.

Selective Logging

Skip by Namespace

DRF_API_LOGGER_SKIP_NAMESPACE = ['admin', 'api_v1_internal']

Skip by URL Name

DRF_API_LOGGER_SKIP_URL_NAME = ['health-check', 'metrics']

Filter by HTTP Method

DRF_API_LOGGER_METHODS = ['GET', 'POST', 'PUT', 'DELETE']

Filter by Status Code

DRF_API_LOGGER_STATUS_CODES = [200, 201, 400, 401, 403, 404, 500]

Security & Privacy

Data Masking

Sensitive fields are automatically masked:

DRF_API_LOGGER_EXCLUDE_KEYS = ['password', 'token', 'access', 'refresh', 'secret']
# Result: {"password": "***FILTERED***", "username": "john"}

Default masking also covers common credential-bearing headers and keys including authorization, cookie, set_cookie, api_key, x_api_key, client_secret, private_key, sessionid, and csrfmiddlewaretoken. Matching is case-insensitive and treats hyphens and underscores equivalently.

Request Tracing

Enable tracing to add a unique ID to each request:

DRF_API_LOGGER_ENABLE_TRACING = True  # Default: False

Access the tracing ID in views:

def my_api_view(request):
    if hasattr(request, 'tracing_id'):
        logger.info(f"Processing request {request.tracing_id}")
    return Response({'status': 'ok'})

Custom tracing ID generator:

DRF_API_LOGGER_TRACING_FUNC = 'myapp.utils.generate_trace_id'

Read tracing ID from request header:

DRF_API_LOGGER_TRACING_ID_HEADER_NAME = 'X-Trace-ID'

Path Configuration

DRF_API_LOGGER_PATH_TYPE = 'ABSOLUTE'  # Default

Option	Method	Example Output
ABSOLUTE	request.build_absolute_uri()	http://127.0.0.1:8000/api/v1/?page=123
FULL_PATH	request.get_full_path()	/api/v1/?page=123
RAW_URI	request.get_raw_uri()	http://127.0.0.1:8000/api/v1/?page=123

Programmatic Access

Query log data when database logging is enabled:

from drf_api_logger.models import APILogsModel

# Successful API calls
successful = APILogsModel.objects.filter(status_code__range=(200, 299))

# Slow APIs
slow = APILogsModel.objects.filter(execution_time__gt=1.0)

# High SQL query count (requires profiling)
heavy_sql = APILogsModel.objects.filter(sql_query_count__gte=10)

Model Schema

class APILogsModel(Model):
    id = models.BigAutoField(primary_key=True)
    api = models.CharField(max_length=1024)
    headers = models.TextField()
    body = models.TextField()
    method = models.CharField(max_length=10, db_index=True)
    client_ip_address = models.CharField(max_length=50)
    response = models.TextField()
    status_code = models.PositiveSmallIntegerField(db_index=True)
    execution_time = models.DecimalField(decimal_places=5, max_digits=8)
    added_on = models.DateTimeField()
    profiling_data = models.TextField(null=True)            # JSON breakdown
    sql_query_count = models.PositiveIntegerField(null=True) # For filtering

Warning

Over time, the logs table will grow large. Archive or delete old data periodically and add indexes to improve query performance.

Performance & Production

# Use a dedicated database for logs
DRF_API_LOGGER_DEFAULT_DATABASE = 'logs_db'

# Optimize batch settings for high traffic
DRF_LOGGER_QUEUE_MAX_SIZE = 100
DRF_LOGGER_INTERVAL = 5

• Low request-path overhead from enqueue-only background processing

• Observable queue backlog via LOGGER_THREAD.get_status() for health checks

• Efficient storage (bulk database operations)

• Production-safe profiling (force_debug_cursor is thread-local, reset_queries prevents memory leaks)
